C-Fit Easy

Q: Can this screen be installed flat against a building wall?

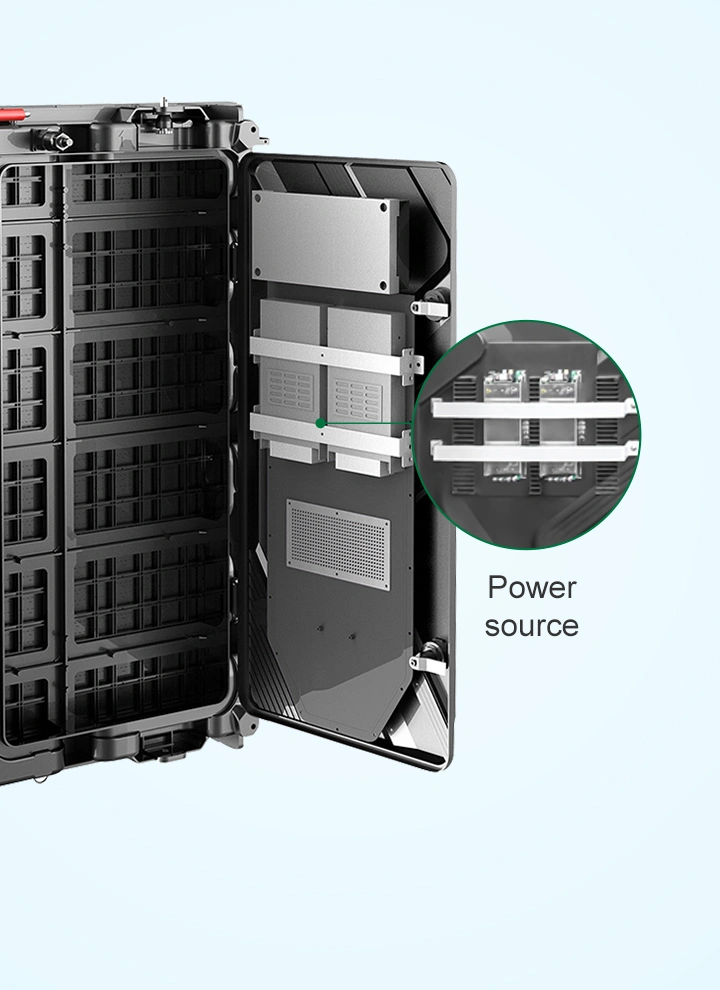

Absolutely. The C-Fit Easy series supports full front-service access. Technicians can use a magnetic tool to remove modules and power supplies directly from the front, completely eliminating the need to build bulky and expensive rear maintenance catwalks.

Q: Will this display pass local light pollution zoning laws?

Yes. By integrating ambient light sensors and standard control systems, the display automatically dims from its 6,000-nit daytime peak to compliant levels at night. This ensures your billboard meets strict US municipal zoning ordinances seamlessly.

Q: How does the 960x960mm size help lower union labor costs?

The large, standardized 960mm (37.8-inch) footprint covers more surface area per lift than smaller standard cabinets. Combined with precise CNC-machined alignment pins, it drastically reduces the crane time and expensive union hourly labor required to rig a large structure.

Q: Can it withstand extreme coastal weather and winter storms?

Engineered for North American extremes, the display features an IP65-rated front that protects against heavy rain, blizzard conditions, and dust. Additionally, the UV-resistant masks and conformal-coated components resist salt corrosion perfectly in coastal environments.

US-stocked P6.67 outdoor LED display for DOOH. 960x960mm die-cast frame, front/rear service, and IP65 weather resistance. Cut labor costs and deploy faster.

Specification

Pixel Pitch	6.67 mm (SMD)

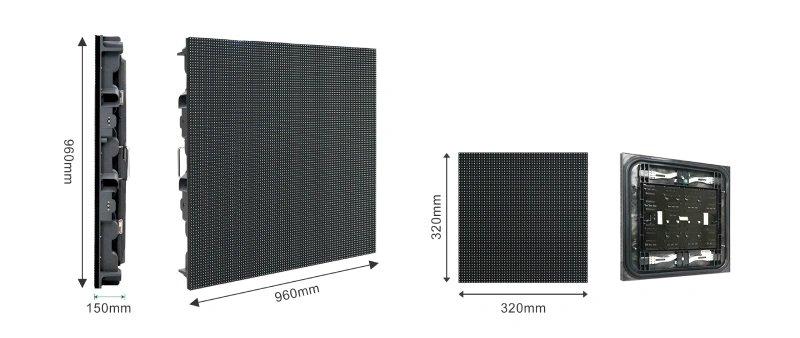

Cabinet Size	960×960 mm (37.8×37.8 in)
Brightness	5,500 – 6,000 nits (Auto-dimming supported)
Service Access	100% Front & Rear
Protection	IP65 Front / IP54 Rear

US Local Inventory — Ships directly from domestic warehouses to beat tight deadlines without ocean freight delays.
Dual Service Access — Magnetic front and standard rear access fit both flat walls and pole mounts effortlessly.

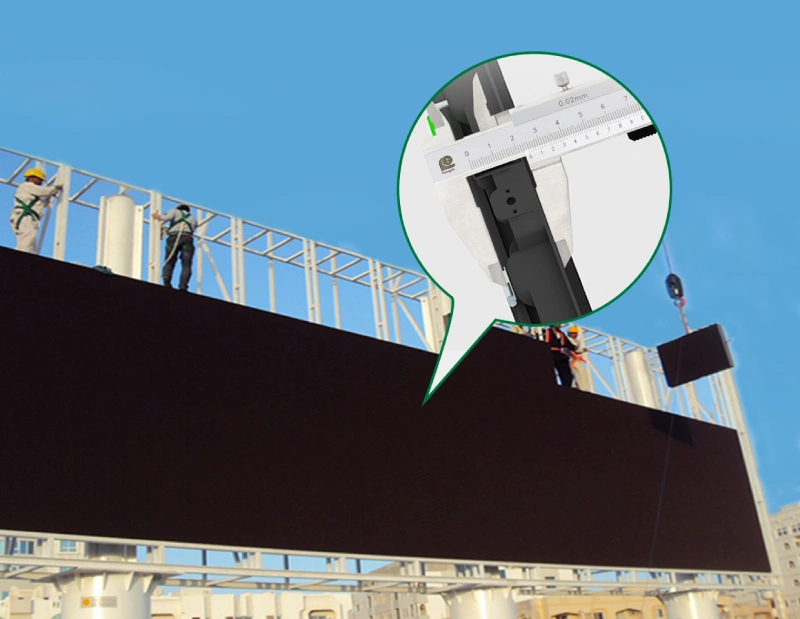

CNC Precision Frame — Die-cast aluminum cabinets guarantee flat, gapless alignment for massive digital billboards.
IP65 Weather Defense — Fully sealed modules and UV masks withstand coastal salt spray and winter blizzards.
Zoning Compliant — Auto-dimming sensors adjust night brightness to seamlessly pass strict municipal light pollution laws.
Standardized 960mm Footprint — Simplifies heavy steelwork calculations and allows future pitch upgrades on the same frame.

Get Quote Now

Spec Sheet

Description

Solution

FAQs

Slash Installation Labor Hours

Ergonomic handles and dual-access modules allow smaller crews to work faster, significantly reducing expensive union hourly rates during on-site setups and long-term maintenance.

End International Shipping Delays

Relying on our North American warehouse stock means you can start rigging in days, not months, protecting your project timelines and maintaining trust with your advertising clients.

Conquer Extreme Climates

From 100°F+ summer heat to sub-zero freezes, the IP65-rated sealed chassis keeps sensitive internal electronics dry and functioning at peak performance throughout the seasons.

Mount Anywhere Without Catwalks

Full front-service capability means the display can be mounted flush against existing commercial walls, saving premium architectural space and eliminating costly structural steelwork.

Pass City Zoning Inspections

Compatible with intelligent ambient light sensors, the display automatically dims at night to meet strict local light pollution ordinances seamlessly without manual intervention.

Future-Proof Your Structure

The universal 960x960mm cabinet frame allows you to upgrade to a finer pixel pitch years later by simply swapping the LED modules, protecting your initial heavy steel investment.

Send a Comment

Project stauts:*

This field is required.

Business email:*

This field is required.

Phone:

Your country:*

This field is required.

Width in millimeter:

Height in millimeter:

Uncertain size

Installation method:

Type:*

This field is required.

Message

Get Quote Now

Product Highlights

US Local Inventory

Fast dispatch from NA warehouses eliminates long ocean freight delays.

Front & Rear Service

Swap modules magnetically from the front or use standard rear access.

IP65 Weather Defense

Sealed against heavy rain, dust, and snow for reliable 24/7 operation.

CNC Precision Frame

Die-cast aluminum ensures seamless, gap-free alignment for large walls.

Application Scenario

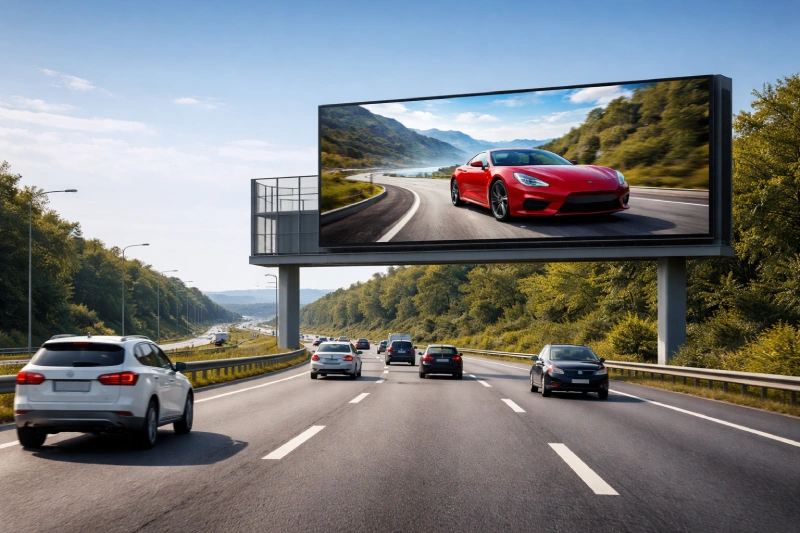

Interstate Highway Billboards

Deliver high-contrast, long-distance readability for interstate traffic while utilizing the large 960mm footprint to simplify gantry steelwork.

Commercial Retail Façades

Mount flush against shopping mall exteriors to drive foot traffic and sponsor revenue without requiring bulky rear maintenance corridors.

Sports Stadium Tailgate Zones

Engage crowds with reliable, high-brightness broadcast feeds and sponsor loops in outdoor fan zones and ticketing plazas.

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.

+86 18148555033
manager@chipshow.com
Exportweg 8 9301 ZV Roden Netherlands

Is the C-Fit Easy P6.67 in stock in the US?

Yes. We maintain extensive inventory of the P6.67 960x960mm cabinets in our North American warehouse. This enables fast domestic shipping, eliminating international ocean freight delays and helping you meet tight commercial project deadlines.

C-Fit Easy – Chipshow NA

C-Carbon P3.91

≥5,500 – 8,000 cd/㎡

C-Carbon P8.93

≥4,000 – 5,500 cd/㎡, ≥5,500 – 8,000 cd/㎡

C-Slim

≥4,000 – 5,500 cd/㎡, ≥8,000 – 10,000 cd/㎡, ≥10,000 cd/㎡

C-Smart

≥5,500 – 8,000 cd/㎡

C-Vent P16

≥5,500 – 8,000 cd/㎡

C-MAX-COB

≤900 cd/㎡

C-MAX-SMD

≤900 cd/㎡

C-mesh-F

≥1,000 – 4,000 cd/㎡

C-mesh-G

≥1,000 – 4,000 cd/㎡

C-Carbon P3.91

≥5,500 – 8,000 cd/㎡

C-Carbon P8.93

≥4,000 – 5,500 cd/㎡, ≥5,500 – 8,000 cd/㎡

C-Rock

≥4,000 – 5,500 cd/㎡, ≤900 cd/㎡

C-Shine-Plus

≥1,000 – 4,000 cd/㎡, ≥4,000 – 5,500 cd/㎡

C-Sport

≥5,500 – 8,000 cd/㎡, ≥8,000 – 10,000 cd/㎡

C-MAX-COB

≤900 cd/㎡

C-MAX-SMD

≤900 cd/㎡

C-mesh-F

≥1,000 – 4,000 cd/㎡

C-mesh-G

≥1,000 – 4,000 cd/㎡

C-Vent P16

≥5,500 – 8,000 cd/㎡

C-mesh-F

≥1,000 – 4,000 cd/㎡

C-mesh-G

≥1,000 – 4,000 cd/㎡

C-Vent P16

≥5,500 – 8,000 cd/㎡

C-Vent P15.6

≥5,500 – 8,000 cd/㎡

C-Vent P25

≥5,500 – 8,000 cd/㎡

C-Carbon P3.91

Pixel Pitch:

P3.0 – P3.9

Cabinet Size:

1000 × 1000 mm series

Brightness:

≥5,500 – 8,000 cd/㎡

C-Carbon P8.93

Pixel Pitch:

≥ P6.0

Cabinet Size:

1000 × 1000 mm series

Brightness:

≥4,000 – 5,500 cd/㎡, ≥5,500 – 8,000 cd/㎡

C-Slim

Pixel Pitch:

P4.0 – P5.9, ≥ P6.0

Cabinet Size:

1000 × 1000 mm series, 640 × 480 mm series, 960 × 960 mm series

Brightness:

≥4,000 – 5,500 cd/㎡, ≥8,000 – 10,000 cd/㎡, ≥10,000 cd/㎡

C-Smart

Pixel Pitch:

P3.0 – P3.9, P4.0 – P5.9

Cabinet Size:

1280 × 640 mm series, 640 × 960 mm series, 500 × 500 mm series, 640 × 320 mm series

Brightness:

≥5,500 – 8,000 cd/㎡

C-Vent P16

Pixel Pitch:

≥ P6.0
