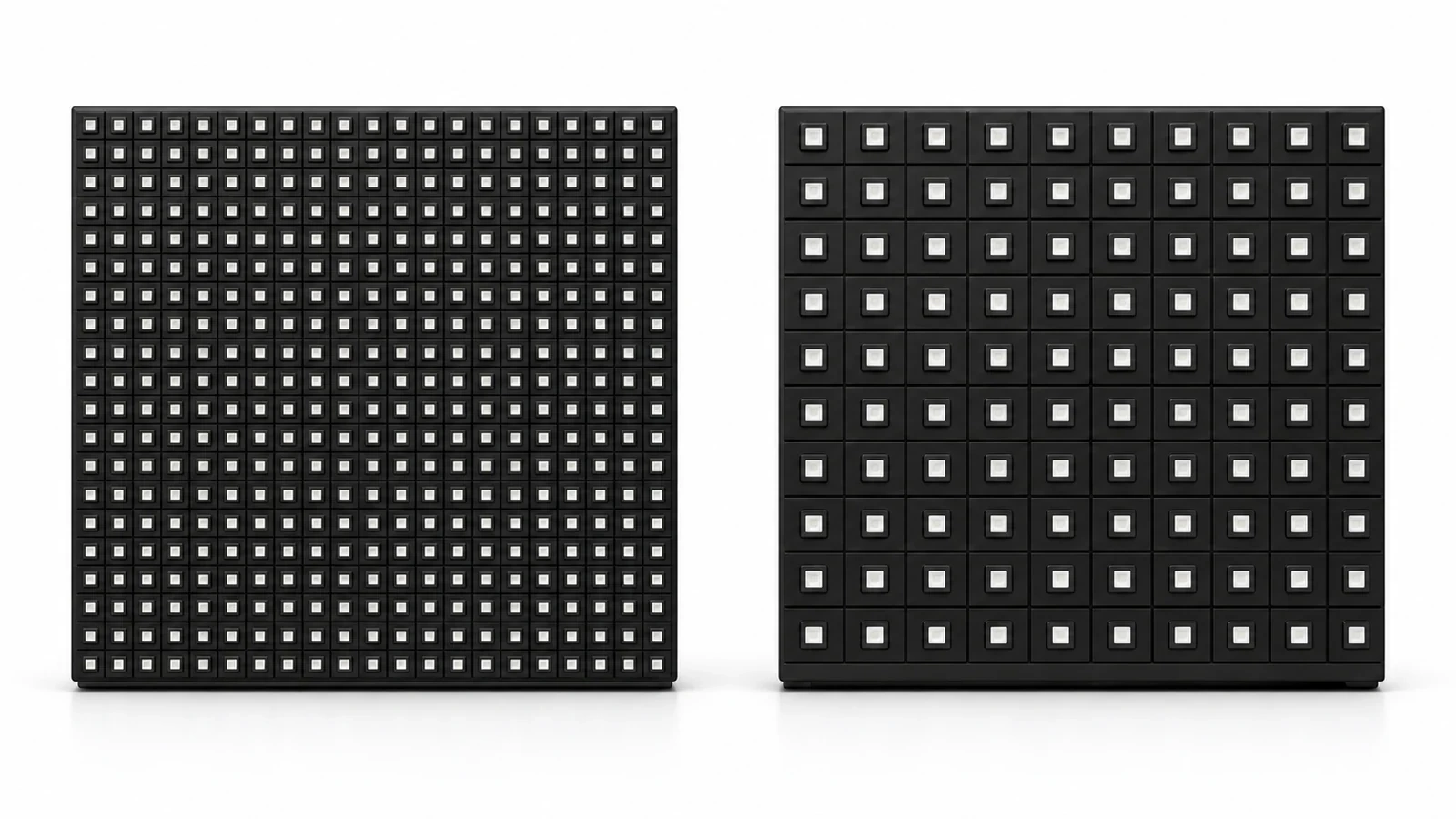

When shopping for an LED display, pixel pitch (labeled P2.5, P3, P4, P6, and so on) is the single factor that most shapes overall cost, the minimum viewing distance you need, and which applications the screen is suited for. A smaller pitch number means denser pixels and finer image detail, but a higher cost per square foot for the same area. A larger pitch number is better suited to long-distance viewing on large-format screens, and typically costs less per square foot. This guide walks through P2.5, P3, P4, and P6 pitch classes, the applications each is commonly used for in the US market, and the cost factors to weigh, matched against Chipshow’s current US product lineup for each tier.

Pixel Pitch at a Glance

The table above is a general reference for narrowing down options. Actual per-square-foot pricing depends on brightness requirements, service access (front vs. rear maintenance), IP rating (IP65 vs. IP54), control systems, and overall project scale. We recommend requesting a formal quote from the Chipshow America team based on your specific site conditions.

P2.5 LED Module Price and Where It Fits

P2.5 sits at the finer end of the indoor tier, commonly used where viewers stand relatively close to the screen — interactive retail walls, corporate control rooms, or projects retrofitting an aging LCD video wall into LED. These projects are typically priced by module or cabinet rather than as a single lump sum for the whole wall, so understanding module-level cost structure helps you read a quote line by line. To understand how these components factor into complete system costs, you can review our full led screen price guide usa.

Chipshow America currently offers two product lines built around P2.5:

C-Max Commercial SMD

Covers P1.25 through P4.0 (including P2.5), in a native 4:3, 640×480mm module built on a high-precision die-cast aluminum chassis. It supports cross-pitch module compatibility, making it a strong fit for direct LCD-to-LED retrofit projects, with a front-service design for straightforward day-to-day upkeep.

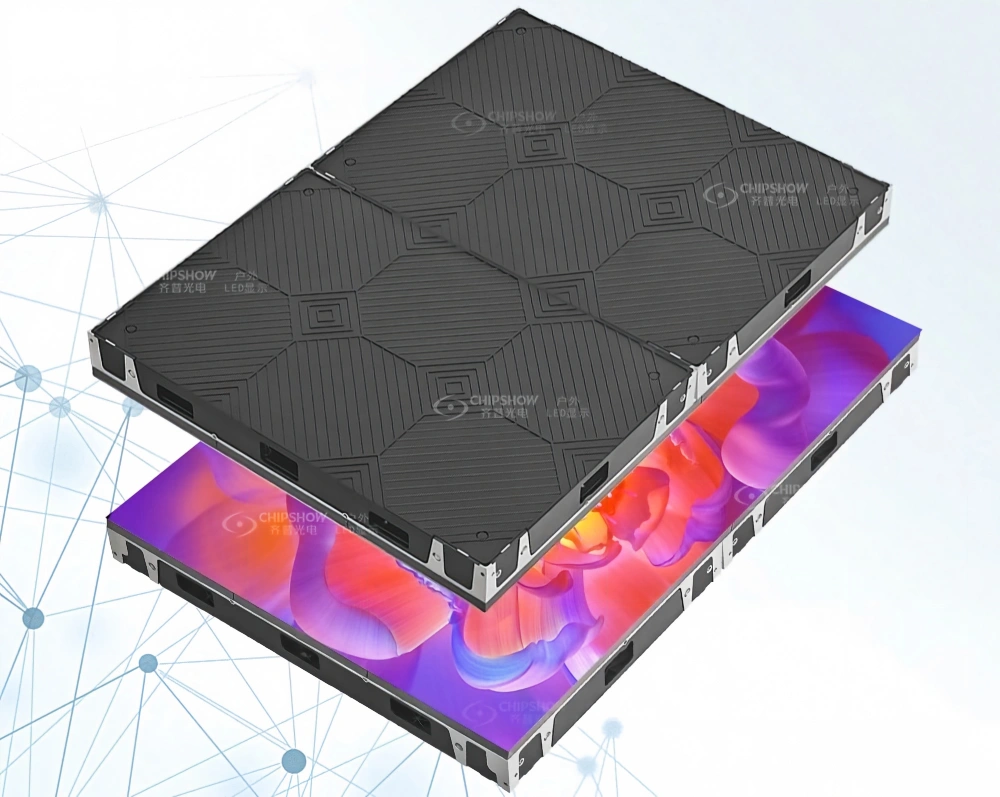

C-Max-Eco Commercial LED Display

Also available in P1.86 and P2.5, positioned as a budget-friendly commercial platform aimed at faster payback for small commercial spaces — retail, food service, office lobbies. It shares the die-cast aluminum chassis and 100% front-service design.

If your project is a control room or any space that needs long, stable uptime, C-Max Commercial SMD’s module compatibility is the safer starting point. If budget is the primary driver and the use case is straightforward — a storefront sign, for example — C-Max-Eco is the more practical option.

P3 LED Screen Price: Rental vs. Fixed Install

“P3-class” is really a shorthand — actual pixel pitch may land at P2.9, P3.8, or P3.91 depending on the product — and this tier spans two very different use cases: touring or event rental, where the screen is frequently rigged, struck, and transported, and fixed indoor installation, where the screen goes up once and stays put. The cost drivers for these two scenarios differ meaningfully: rental favors weight, quick-lock hardware, and build speed, while fixed installs favor long-term stability and ease of maintenance.

For rental and touring use, Chipshow America’s common P3-class options include:

C-Rock Series (Indoor/Outdoor)

Available in P2.6 / P2.9 / P3.9 / P4.8, engineered for wind-braced rigging and sunlight-dominant visibility, positioned as a tour-grade structure with 500×500mm / 500×1000mm cabinets.

C-Carbon P3.91

Built on an aerospace-grade carbon fiber chassis, the 1×1m cabinet weighs only 20kg and is engineered for roughly 40% faster load-in than a traditional die-cast cabinet, reaching up to 6,000 nits — a fit for touring projects that need to load in and out quickly.

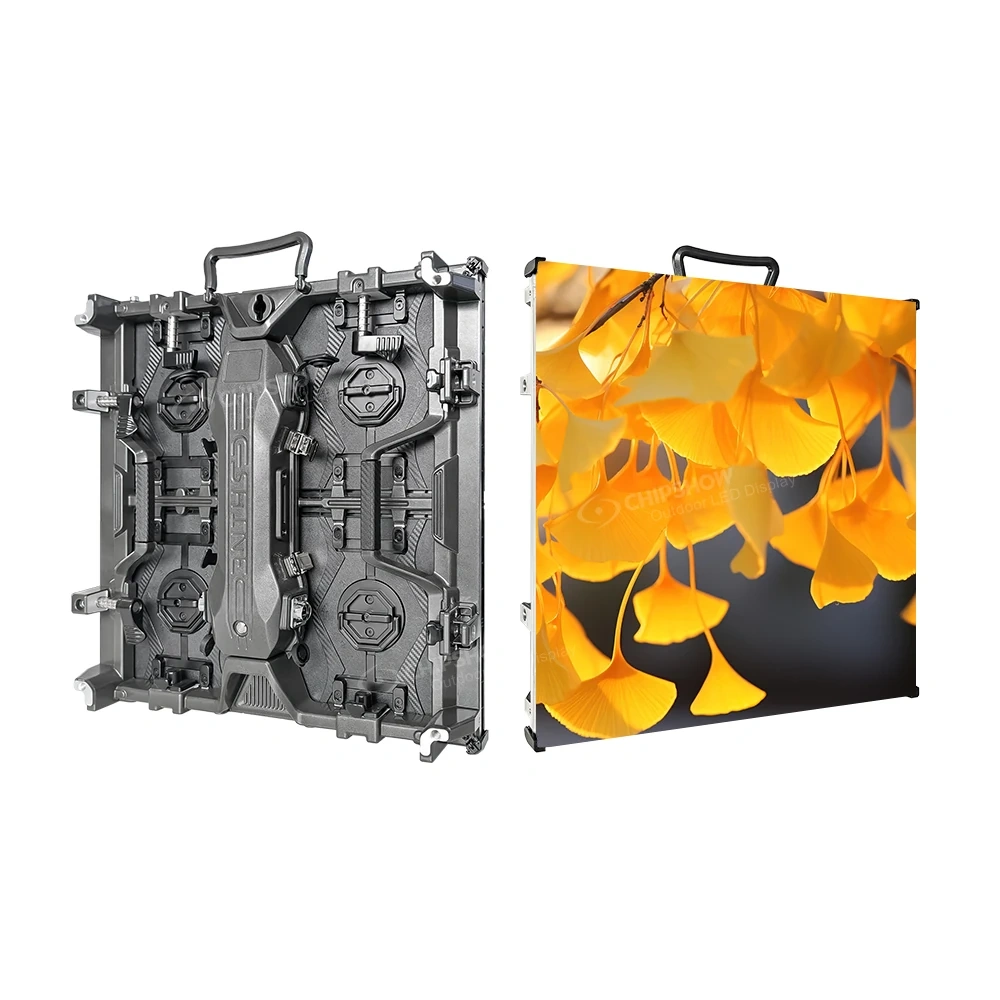

C-Shine Plus Stage Rental LED Display

Indoor P1.9–P3.9 or outdoor P2.9–P3.9, with cabinets weighing 7kg or less, tool-free power box swaps, and one-touch front/rear service. It’s built for venues with union labor rules that put a premium on how quickly a crew can rig and strike the setup. If you are planning event-based deployments, evaluate overall operational rates in our led wall rental cost guide.

Working Out the Cost of an Indoor Fixed P3 Display

If your need isn’t touring rental but a P3-class screen that goes into an office, meeting room, or retail space and stays there, the priorities shift: wind-load structure is no longer a factor, but long-term stable operation, service access (front vs. rear maintenance suited to your space), and integration with surrounding finishes all matter more.

For this fixed-install scenario, the relevant Chipshow America products are:

C-Rock Indoor Series

Offered in P1.9 / P2.6 / P2.9 / P3.9, with an 8kg cabinet that a single installer can rig, supporting a 7,680Hz broadcast-grade refresh rate — a good fit for fixed indoor projects where labor cost for installation is a real consideration.

C-Max-C Retail Ribbon LED Display

Covers P2.5 / P2.6 / P2.97 / P3.91 in a wide ribbon format (1000/750/500mm width × 250mm height), supporting mixed cabinet widths and seamless 90° corner splicing — well suited to storefront headers or shelf-top signage that calls for a long, narrow display.

When budgeting an indoor fixed P3 display, start by working backward from viewing distance and screen area to the pixel density you actually need, then decide between a standard cabinet (C-Rock Indoor) or a shaped ribbon format (C-Max-C) — the per-square-foot cost structure isn’t the same for each.

P4 LED Screen Price and Its Flexibility

P4 is one of the most versatile pitch classes for both indoor and outdoor use — storefront signs, outdoor billboards, and digital signage can all balance cost against image quality at this pitch. Chipshow America’s lineup is also broadest here:

C-Slim Magnesium Outdoor LED Display

Covers P4 through P16 (with SMD/ICE/DIP options), in a 960×960mm cabinet. The magnesium chassis weighs about 25kg, and with the ICE high-brightness configuration reaches up to 14,000 nits — engineered to hold up in extreme climates while remaining serviceable from front or back.

C-Smart Modular LED Sign

Available in P4 / P5 / P6.67 / P10, in a cabinet-less modular design with a 75mm slim wall-mount profile. It’s positioned around factory-direct pricing and California stock support, a fit for storefront projects that need a fast quote and fast delivery. If high architectural transparency is required for storefront glass, you can check options in our transparent led price quote guide.

C-Max-Wall Architectural Texture LED Display

Spans P1.25 through P4.0 as a universal platform that can integrate custom physical textures, built on a magnesium alloy chassis with 100% front service — suited to projects that need the screen to blend into a building façade or a high-end commercial space.

The deciding factor at P4 is usually less about image quality and more about installation environment: for an outdoor sign, C-Slim’s climate tolerance is the priority; for indoor digital signage on a tighter budget, C-Smart’s factory-direct pricing may pencil out better.

P6 LED Display Price: Outdoor Value

P6-class (commonly P6.67) has a wider pixel pitch, which lowers cost per unit area — a good value pick for large-format outdoor billboards, parking-structure signage, and building façade advertising, where viewers are typically at a distance. To see how P6 compares directly against tighter pitches for permanent outdoor structures, review our detailed outdoor led display price breakdown.

C-Fit Easy P6.67

A 960×960mm cabinet, stocked in the US for fast shipping, serviceable from front or rear, with IP65 protection to handle outdoor weather. It’s built to reduce union labor cost for installations that need to go up quickly.

C-Slim (which spans P4 through P16, including P6) and C-Smart (which includes a P6.67 option) also cover this tier. If your project is weighing both P4 and P6, these two lines let you compare within a single product family rather than switching vendors.

Working Out an Overall Indoor LED Wall Budget

If you haven’t settled on a specific pixel pitch yet and just want a sense of what an indoor LED wall costs overall, it helps to look at Chipshow America’s indoor lineup side by side:

A practical way to build the budget: first confirm your viewing distance and content type (text-heavy vs. video-heavy) to narrow the pixel pitch range; then, within that range, choose a product tier based on positioning — premium display, general commercial, or budget-first; only then compare brightness, service access, and warranty terms, which are the details that ultimately move the final quote.

Next Step: Get a Quote Based on Your Site

The price tiers and product comparisons above are meant as a starting point for evaluation — actual quotes will vary based on total screen area, brightness requirements, control systems, installation environment, and service level. Chipshow America maintains California-based stock and US local support, and can provide product recommendations and a formal quote based on where your project stands (still researching, comparing quotes, or ready to install within three months). You’re welcome to submit your project details through the “Get Quote Now” form on our site, and the team will follow up promptly.

If your need centers on a specific application — stadium, stage, or house of worship — see our companion guide, “LED Screen Cost Guide for Special Applications: Stadiums, Stage Backdrops, and Houses of Worship,” for more targeted product recommendations.
